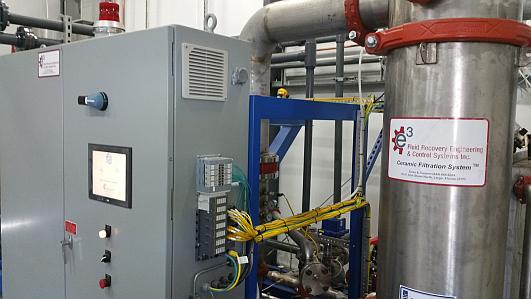

JCS 1370™

Ceramic-based filtration is a state-of-the-art filtration technology that came about as an outgrowth of research in the nuclear power industry. While it has been well established that microfiltration and ultrafiltration are highly effective at removing particles to the sub-micron level, previous technologies have been limited by the chemical and temperature environments in which they can operate.  Ceramic filters, however, are extremely robust.

CERA-CLEAR™ is a technology that can filter liquids to the sub-micron level, effectively clarifying, to a significant degree, a host of different streams high in COD/BOD (Chemical Oxygen Demand/Biochemical Oxygen Demand), TSS (Total Suspended Solids), TKN (Total Kjeldahl Nitrogen), O&G (Oil and Grease), and other insoluble or suspended materials, as well as some soluble matter. The principal of operation is cross-flow microfiltration or ultrafiltration using highly selective ceramic filters whose operating range is engineered for the targeted objectives.

The CERA-CLEAR™ JCS™ system provides the ability to remove all but the smallest organic molecules or soluble ions, clarifying juices, dairy products, wines, vinegars, ciders, liquor, vegatable juice, and sugars in the beverage industry.

JCS 1370™, 25 gpm Influent, 1500 gph Influent





Model™

JCS 1370™

Influent

8hr Day

Influent

16hr Day

Juice Solution

Clarified /8hr Day

Juice Solution

Clarified  /16hr Day

Per Day

12,000 gal.

24,000 gal.

11,760 gal.

23,520 gal.

Per Month

360,000 gal.

720,000 gal.

352,800 gal.

705,600 gal.

Per Year

4,320,000 gal.

8,640,000 gal.

4,233,600 gal.

8,467,200 gal.

PRODUCT FEATURES

  • Greater than 99% removal of most contaminants and biologicals
  • Clear juice / beverage filtrate exempt of suspended solids with extremely  low turbidity
  • Wine clarification results in a very clear filtrate ready for wine making. - Saves time avoiding decantation in tank.
  • Dairy Milk protein fractionation, Bacteria and spore removal, whey seperation, milk concentration
  • Chemically and biologically inert
  • Resistance to extreme temperatures
  • No chemical treatment required
  • Resistance to concentrated acids, bases, & solvents
  • Low initial equipment cost
  • Low operating cost
  • Low maintenance – ease of cleaning
  • Long working life - measured in decades
  • All stainless steel construction for piping, valves, and pumps.

Our ceramic elements do not wear out. Our systems use Clean In Place technology to maintain the elements.

  • Our systems recover heat (energy) as well caustic solution, virtually doubling the savings
  • Because our systems are ceramic based, we can process streams at any temperature from ambient to boiling
  • Our energy recovery is clear and measurable with our automated Digital Dashboard.
  • Our systems are deterministic, based on science, chemical engineering and mathematics

Our A.I. AOS™ (Autonomous Operating System) is highly evolved, automated & scalable.

  • Our A.I. AOS™ control system is generations ahead of the competition
  • Our highly evolved A.I. AOS™ monitors system performance, and every aspect of the system operation
  • Operator Interface is an intuitive 10.4" 65k color touch screen interface.
  • Our A.I. AOS™ is remote access & monitoring capable to your PC, iPad, Android based  or mobile device
  • Our Digital Dashboard provides messaging, alerts, & reports metrics for management and engineering staff

We have NO replaceable media

  • Our systems remove all bacteria and do not go septic. Most bacteria cannot fit through the pores of our ceramic membranes. It is a matter of physics.
  • Small physical footprint. Our small footprint relative to others; 4’ x 8’ cf. versus others’ systems of sand filters, carbon filters and additional tanks and pumps.
  • Our system is extremely simple to install – four connections, all on the same side of the skid.
  • Our JCS™ operates in concert with your systems, pervaporation systems, and semi-batch processing systems
  • Filtrate is clear of suspended solids with the turbidity < 1 NTU
  • Concentrate contains ~ 98 % of suspended matters with the turbidity > 1000 NTU.

INDUSTRY APPLICATION

CERA-CLEAR™  Juice Clarification System™

Porosities to 0.01 microns are now available, providing the ability to remove all but the smallest organic molecules or soluble ions. E3's JCS™ are ideally suited for clarifying juices and beverage streams in a wide range of industries .

It is important to have confidence that bacteria cannot be passed through the filters. Ceramic membranes deal in absolute porosities. These types of contaminants cannot pass through our ceramic membrane elements because they exceed the pore size of our membranes.

  • Juice clarification
  • Wine clarification
  • Dairy milk
  • Dairy whey separation
  • Dairy milk concentration
  • Syrup clarification
  • Concentration of vegetable juices
  • Vinegar clarification
  • Cider clarification
  • Re-melt liquor clarification

Some examples of juices that can be processed with the Juice Clarification System™

  • Grape
  • Citrus
  • Papaya
  • Mango
  • Apple
  • Syrup
  • Agave
  • Pineapple

SPECIFICATION






Model                                                                     JCS 1370™
Design  Standard Option
Configuration Feed / Bleed
Juice / Beverage  Product Tank Raw Juice Feed  / Beverage
Standard Clarification 98%
Rejection, Flow Rates & Pressures
COD Influent Raw Waste 9118 mg/L, Effluent /Filtrate 139 mg/L, Total Reduction   99 %
TSS Influent Raw Waste 1628 mg/L, Effluent / Filtrate < 5 mg/L,  Total Reduction > 99 %
TKN Influent Raw Waste  930 mg/L, Effluent / Filtrate   23 mg/L,  Total Reduction    98 %
Nominal Feed Flow gpm (lpm) 20 (76)
Maximum Feed Flow gpm (lpm) 25 (95)
Filtrate Flow* gpm (lpm) 11.5 (43.5)
Minimum Concentrate Flow gpm (lpm) 2 (7.5)
Loop Pressure 70 - 100 psi
Feed Pressure 40 – 70  psi
Connections
Feed 2” Flanged
Filtrate 1.5” Flanged
Concentrate 1.5” Flanged
Remote Access / Monitoring / Digital Dashboard Ethernet RJ-45
Membranes
Ceramic Membrane (elements) Module(s) 1
Ceramic Membrane Size 41 mm x 1200 mm
Ceramic Membrane Composition AL203 TiO2
Ceramic Module
Ceramic Tube Sheet Array Size 16"
Feed  Pump
Pump Model Type Centrifugal
Motor HP 7.5 HP
GPM @ PSI 60 (60 Hz) 120 gpm @ 60 psi
Re-Circulation  Pump
Pump Model Type Centrifugal
Motor HP 25 HP
GPM @ PSI (60 Hz) 1250 gpm @ 30 psi
Control System & Sensors
E3 A.I. AOS 104 PU Controller 500 Mhz RISC CPU
E3 Security Appliance & VPN Encryption Engine 10/100/1000 mbps 7 port switch
PLC IDEC Pentra FCSA - D12KIE
Operator Interface Panel IDEC HG4G Color Touchscreen
Pneumatic Air Manifold Parker Isys
VFD Telemechanique - sized for applicable motor and current
Valve inductive proximity switch 10 - 30 VDC
Valve, Globe - AO Schubert and Salzer 7010
Valve, Globe - Electrically Operated Schubert and Salzer BM24C
Temperature sensor thermistor, 0 - 350F, NTC type III
Temperature gauge bi-metal
Pressure transducer 0 - 150 psi, 4 - 20 mA
Pressure transducer 0 - 15 psi, 4 - 20 maA
Pressure gauge liquid filled, 0 - 200 psi, 2.5" dial
Pressure gauge liquid filled, 0 - 30 psi, 2.5" dial
Flow meter magnetic, 4 - 20 mA, GF Signet 2551
Conductivity    4 - 20 mA
Colorimeter    4 - 20 mA
Float switch side mount
Transformer 240/480 to 120/240, 1000 VA
Misc
Air-over-water type automatic back pulse device Automated
Clean-in-Place System, 50 gallon cleaning tank Automated
Electrical
One (1) NEMA 12 enclosure
Control Voltage 110V, 60Hz, 1 ph 110V, 50Hz, 1 ph
Voltage Options 240V, 60Hz, 3 ph / 480V, 60Hz, 3 ph 220V, 50Hz, 3 ph /  440V, 50Hz, 3 ph
PLC Module 24VDC, 120W
2-pole safety disconnect
Systems Dimensions **
L x W x H inch (cm) 96 x 48 x 102 (245 x 120 x 260)
Weight lb. (kg) 2250 (1020)
Operating Conditions
Ambient Operating Temperature 0 to 55°C  /131°F
Operating Humidity 30-95% Level RH (no condensation)
Design Flow 100 gpm
Voltage Requirements 240/480
Full Load Power Requirements 100/50 amps
Maximum Temperature 180 F
